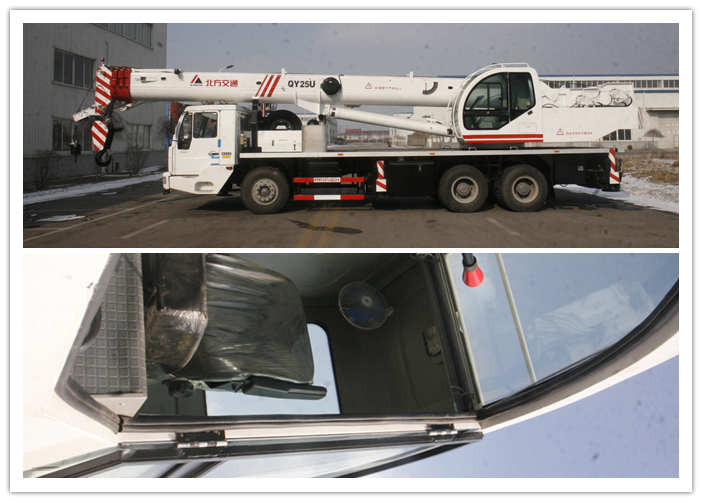

199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span

Product Categories

Shanghai Jindun special vehicle Equipment Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 199kw Hydraulic Truck Crane 25t 70km H With 61m Outrigger Horizontal Span
Brand: KaiFan
Price: 1 USD

Brand Name : KaiFan

Model Number : KFM5323JQZ25G5

Certification : IQNET,ISO

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 300/year

Delivery Time : 3months

Altitude : 0-4500m

Temperature : -25℃--+45℃

Elevation of boom : -2~80°

Rated power : 199KW

Departure angle : 11°

Traveling speed : 70 km/h

Contact Now

Extension time of the lift boom 110s 25T Truck Mounted Crane Horizontal span of outrigger 6.1m

I. The working condition of the truck

1,Allowed working condition: solid, stable land, the vehicle should be horizontal

2,Wind force: ≤6 degree

II. Main Parameters of the truck

Items		Unit	Value
Working Performance Parameters	Max. Rated lifting weight	kg	25000
	Max. Lifting force of the basic boom	kn.m	970
	Max. Lifting force of the longest main boom	kn.m	470
	Max. Height of the main boom	m	40
	Max. Height of the vice boom	m	48.2
	Max. Speed of the single rope (the second stage)	m/min	120
Traveling Parameters	Max. Traveling speed	km/h	70
	Max. Grade ability	%	30
	Min. Turning radius	m	11
	Min. Ground clearance	m	0.27
	Approaching angle	°	16
	Departure angle	°	11
Dimension Parameters	External dimension(length×width×height)	mm	12790×2500×3460
	Vertical span of outrigger	m	5.35
	Horizontal span of outrigger	m	6.1
	Length of main boom	m	10.3~39.5
	Length of vice boom	m	8.3
	Elevation of boom	°	-2~80

III. Standard Equipments of the truck

1. Electric system

3. Outrigger

4. Superstructure control system

5. Chassis control system

6. Tool box

199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span
