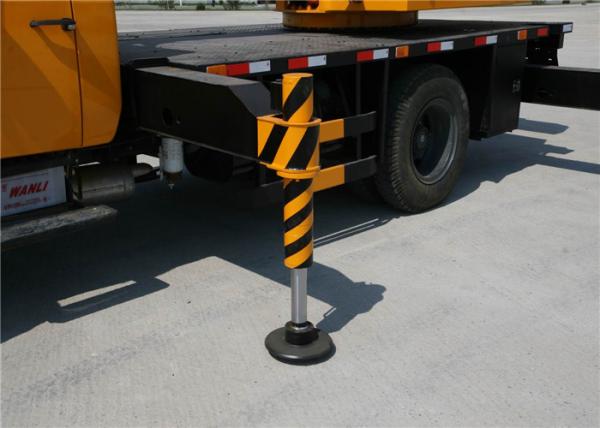

XICHAI CA4DF3-13E3 Engine Hydraulic Truck Crane 101kw , 25℃--+45℃

Product Categories

Shanghai Jindun special vehicle Equipment Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: XICHAI CA4DF313E3 Engine Hydraulic Truck Crane 101kw 2545
Brand: Jiefang
Price: 1 USD

Brand Name : Jiefang

Model Number : KFM5115JQZ8F

Certification : IQNET,ISO

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 300/year

Delivery Time : 3months

Altitude : 0-4500m

Temperature : -25℃--+45℃

Engine model : XICHAI CA4DF3-13E3

Rated power : 101kw

rotate speed : 2500r/min

Axle base : 4050mm

Contact Now

7～17.25m Length of main boom hydraulic Truck crane Max Rated lifting weight 8 Ton

One. Working Condition

1,Altitude: 0-4500m

2,Temperature: -25℃--+45℃

3,Allowed working condition: solid, stable land, the vehicle should be horizontal

4,Wind force: ≤6 degree

Two. Main Parameters

Items		Unit	Value
Working Performance Parameters	Max. Rated lifting weight	kg	8000
	Max. Lifting force of the basic boom	kn.m	245
	Max. Lifting force of the longest main boom	kn.m	108
	Max. Height of the basic boom	m	7.95
	Max. Height of the main boom	m	17.95
	Max. Height of the vice boom	m	23.7
	Max. Speed of the single rope	m/min	120
Working Speed	Extension time of the lift boom	s	30
	Lifting time of the lift boom	s	25
	Turning speed	r/min	0～2.5
Traveling Parameters	Max. Traveling speed	km/h	74
	Max. Grade ability	%	30
	Min. Turning radius	m	8.2
	Min. Ground clearance	m	0.265
	The whole weight	kg	11400
Chassis	Model	—	CA5115JQZ
	Engine model	—	XICHAI CA4DF3-13E3
	Rated power/rotate speed	kw/(r/min)	101/2500
	Max. Torque/rotate speed	n.m/(r/min)	450/1400
	Axle base	mm	4050
