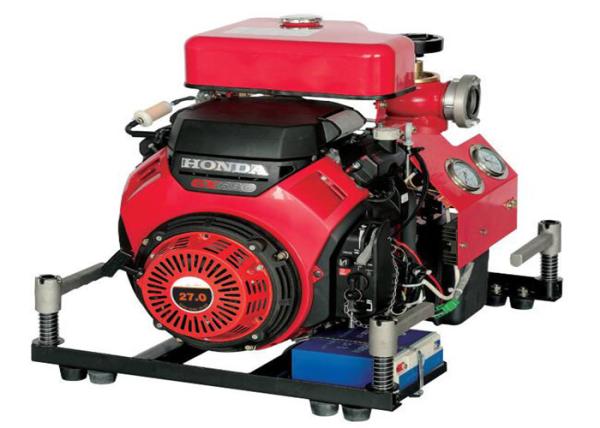

High Lift Portable Fire Pump 9m Maximum Suction Depth Hand / Electric Start Startup

  • 1
  • 2

Brand Name : Jindun

Model Number : JBQ10/8.6-H

Certification : ISO

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 300/year

Delivery Time : 3months

Dimension : 780×600×650mm

Net weight : ≤98kg

Highest lift : 145m

Rated pressure : 1.0Mpa

engine model : 27HP,HONDA GX690

Output power : 17.9kW (27PS)

Rated flow rate : 520L/min

Contact Now

9m Maximum suction depth High lift Portable fire pump Hand / electric start startup mode

Dimension 780×600×650mm
weight ≤98kg
Rated flow rate 520L/min
Highest lift 145m
Rated pressure 1.0Mpa
Inlet pipe diameter φ80mm
Outlet pipe diameter φ65mm
Water gun nozzle diameter φ19mm
Connection method Threaded type
Maximum suction depth 9m
Water diversion time ≤20s
Startup mode Hand / electric start
engine model 27HP,HONDA GX690
Water pump Two-stage

High Lift Portable Fire Pump 9m Maximum Suction Depth Hand / Electric Start Startup
